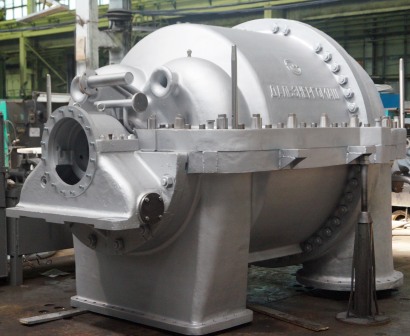

Nitrous Gas Compressor
1150-42-1 centrifugal compressor type is used for compressing and supplying nitrous gas to equipped production line of low concentration nitric acid , and for heat recovery from process gas. . It is a constituent part of complex machine КМА – 2(М) set
Mode of blower’s operation is continuous –(24 hours a day). Interrepair operating period – not less than 329 days (7887 hours in a year).
Composition of nitrous gas inflowing to the nitrous gas compressor, in vol.%
- Nitrogen N2– 87.2
- Nitrogen dioxide NО2– 5.1
- OxygenО2– 4.5
- Nitrogen oxide NО– 1.5
- Water vapour– 1.1
Nitrous gas contains nitric acid and ammonium nitrite in aerosol form and dropping nitric acid in the amount up to 5% of weight flow.
Gas is toxic, non-explosive and exerts strong corrosion effect on metal.
Application branches:
- Chemical industry
Spacifications
№
п/п
|
Parameter
|
Value
|
---|---|---|
1 |
Initialpressureofnitrosegas, absolute, at inlet to the suction nozzle of the compressor, MPa (kgf/cm2) |
0,353 (3,6) |
2 |
Initialtemperatureofnitrosegas, at inlet to the suction nozzle of the compressor, °С |
65 |
3 |
Density of gass upplied to the compressor reduced to 15°Cand0.1013 MPa (760 mm Hg) |
1,2264 |
Initial design conditions:
№
п/п
|
Parameter
|
Value
|
---|---|---|
1 |
Nitrosegascompressorcapacityreducedto15°Cand 0.1013 MPa (760 mm Hg), Nm3/hour (kg/hour) |
194400 (251300) |
2 |
Gas final pressure, absolute, at exit from the delivery nozzle of the compressor, MPa (kgf/cm2) |
1,196 (12,2) |
3 |
Gas final temperature at exit from the delivery nozzle of the compressor, °С |
217 |
4 |
Shaft rotation speed, sec-1 (rev./min) |
83,3 (5000) |
