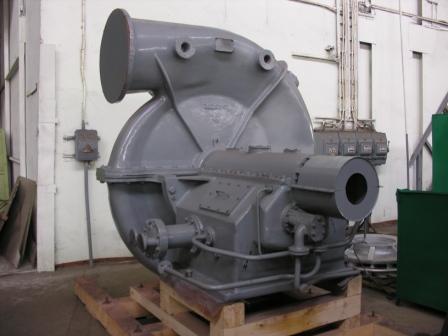

Sulphurous Gas Blowers
Sulphurous gas blowers 400-12-2, 700-13-1, 1050-13-1, and Э 1700-11-2М are used for compressing and conveying sulphurous gas containing SO2 up to 7 vol.%.
Application branches:
- Chemical industry
- Petrochemical industry
- Mining industry
- Metallurgy
Competitive advantages and design features
- 400-12-2, 700-13-1, and 1050-13-1 types are single-shaft and single-stage blowers in a single case
- Subassemblies of lubrication system are arranged on the case of the blower’s bearing and connected by pipeline
- Asynchronous 3-phase AC motors are as a drive. The exception is Э1700-11-2М blower which is driven by a synchronous motor
Specifications
|
Type
|
Capacity m3/min
|
The final absolute pressure kgf/cm2
|
Power consumption kW
|
Rotor speed 1/min
|
Mass t
|
Engine power kW
|
Voltage V
|
Engine mass t
|
|---|---|---|---|---|---|---|---|---|
|
400-12-2 |
280-425-680 (280-425-680) |
1900-1860-1220 (200-1950-1275) |
110-145-168 (115-150-170) |
2965 |
5,0 |
250 |
380 |
1,1 |
|
700-13-1 |
500-700-1080 (500-700-1080) |
2960-2920-2060 (3110-3050-2170) |
300-370-450 (310-390-470) |
2970 |
5,2 |
500 |
6000 |
2,1 |
|
500-700-1080 (500-700-1080) |
2960-2920-2060 (3110-3050-2170) |
300-370-450 (310-390-470) |
2970 |
5,2 |
630 |
10000 |
2,8 |
|
|
1050-13-1 |
640-1100-1400 (640-1100-1400) |
3140-2870-2040 (3300-3000-2120) |
408-555-582 (420-580-610) |
2980 |
6,0 |
630 |
6000 |
2,8 |
|
Э 1700-11-2М |
1100-1850-2350 |
3510-3152-2240 |
740-1020-1090 |
3000 |
6,5 |
1250 |
6000, 10000 |
6,4 |
