Competitive advantages and design features of Aero-SM

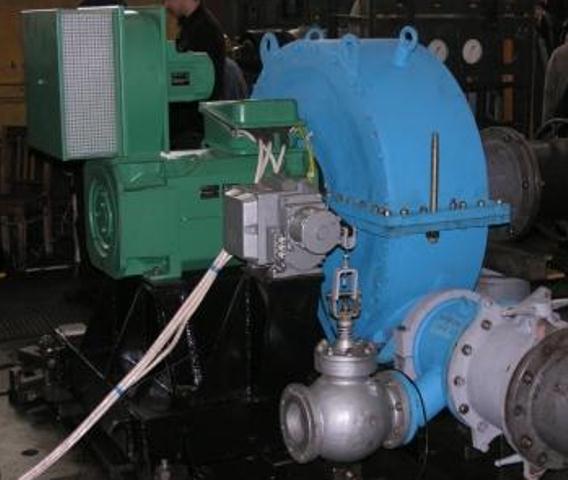

- By design, Aero-SM is a modular single-stage blower, without liquid lubricating and cooling systems, with modern automatic control and protection system (ACS). It is arranged on a flat concrete area
- Use of a high-speed electric motor with 8000 rev/min rotational speed as the drive is its principal design feature
- The electric motor has an additional cooling fan. A frequency converter which delivered with the motor controls the blower by changing the rotary speed of impeller
- Inlet regulatory vanes (IRV) are arranged before impeller to expand control range of the blowers
- An axle radial semi-open impeller is fixed on the motor shaft with the key and little interference
- The impeller is made from machined workpiece of wrought aluminum alloy; it determines light weight of impellers and long in-service-life of electric motor bearings
- There are some ridges of the labyrinth seal on the back surface of the impeller and on the side cover. Design of the seals ensures minimal outflow of compressed air (not more than 1%), precludes wear of ridges during operation, keeping work stable
- The diffusor is vane type with welded covering shroud. A rubber seal is installed in a groove between the covering shroud and the side cover, which excludes inner diffuser leakage
- So design features ensure high reliability, efficiency and competitiveness of Aero-SM blowers
Specifications Aero SM
Options |
Aero-SM 100/1,6 |
Aero-SM 200/1,6 |
Aero-SM 375/1,8 |
Aero-SM 525/1,6 |
---|---|---|---|---|
Capacity on absorption m3/h |
6 000 |
12 000 |
22 500 |
31 500 |
The final discharge pressure (absolute) bar |
1,6 |
1,6 |
1,8 |
1,6 |
The final discharge pressure (excess) bar |
0,6 |
0,6 |
0,8 |
0,6 |
Power drive motor kW |
160 |
270 |
630 |
630 |
Motor voltage V |
400 |
400 |
400 |
400 |
Polytropic efficiency at rated operation % |
82 |
82 |
82 |
82 |
Power consumption kW |
110 |
220 |
500 |
570 |
Speed of rotation rev / min |
8 000 |
8 040 |
9 000 |
9 000 |
Type of lubrication |
Grease |
|||
Weight blower with engine on carriage (no more) kg |
2 500 |
2 500 |
5 000 |
5 000 |
Blower size with engine on carriage Length Width Height |
2 300 1 800 1 800 |
2 300 1 800 1 800 |
2 500 2 300 1 800 |
2 500 2 300 1 800 |
Comparative specification Aero-SM 100/1,6 with analoques
Options |
Aero-SM 100/1,6 |
ЦНВ 100/1,6 |
ТВ-80-1,6 |
---|---|---|---|
Capacity, m3/min |
100 |
100 |
80 |
Mass, kg |
2540 |
7670 |
4930 |
Profile: L/B/H, m |
1,55/1,91/1,48 |
2,45/2,30/2,09 |
2,7/1,55/1,57 |
The numbers of impellers |
1 |
2 |
5 |
Availabillity of lubricant system |
- |
+ |
- |
Availabillity of water cooling |
- |
+ |
+ |
Speed rotor, min -1 |
8000 |
4914 |
2980 |
Availabillity of control device and antysurge security |
+ |
+ |
- |
Comparative specification Aero-SM 200/1,6 with analoques
Options |
Aero-SM 200/1,6 |
ЦНВ200/1,6 Р |
ТВ-175-1,6 |
---|---|---|---|
Capacity, m3/min |
200 |
200 |
175 |
Mass, kg |
2600 |
6100 |
7310 |
Profile: L/B/H, m |
1,6/1,91/1,48 |
2,65/2,55/1,84 |
3,37/1,69/1,66 |
The numbers of impellers |
1 |
2 |
5 |
Availabillity of lubricant system |
- |
- |
- |
Availabillity of water cooling |
- |
+ |
+ |
Speed rotor, min -1 |
8000 |
4900 |
2980 |
Availabillity of control device and antysurge security |
+ |
+ |
- |
Comparative specification Aero-SM 375/1,8 with analoques
Options |
Blower |
|
---|---|---|
360-21-1 | Aero-SM 375/1,8 | |
Capacity, m3/min |
375 |
375 |
The final discharge pressure (absolute) bar |
1,8 |
1,8 |
Power consumption, kW |
515 |
500 |
Engine power, kW |
630 |
630 |
Polytropic efficiency |
0,8 |
0,82 |
Specific consumption of electric power, kW·h/m3 |
22,9·10-3 |
22,2·10-3 |
Availabillity of lubricant system |
+ |
- |
Availabillity of liquid system of cooling |
+ |
- |
Availabillity of multilevel foundation |
+ |
- |
Profile, l/b/h, м |
7,0/4,3/2,95 |
2,5/2,3/1,8 |
Mass, t |
11,3 |
4,5 |
Comparative specification Aero-SM 525/1,6 with analoques
Options |
Blower |
|
---|---|---|
Сontinental Industrie 600A-05 | Aero-SM 525/1,6 | |
Capacity, m3/min |
525 |
525 |
The final discharge pressure (absolute) bar |
1,6 |
1,6 |
Power consumption, kW |
630 |
570 |
Engine power, kW |
800 |
630 |
Polytropic efficiency |
0,72 |
0,82 |
Specific consumption of electric power, kW·h/m3 |
20·10-3 |
18,1·10-3 |
Availabillity of lubricant system |
- |
- |
Availabillity of liquid system of cooling |
- |
- |
Availabillity of multilevel foundation |
- |
- |
Profile, l/b/h, м |
5,2/1,9/2,55 |
2,5/2,3/1,8 |
Mass, t |
7,7 |
4,5 |
*Specify the price and receive additional information in Sales Department
